Donut Frying Machine
Introduction
This doughnut making machine uses precision rail device, high-quality motor, to maintain the minimum vibration equipment. All stainless steel, automatic molding, automatic temperature control function, the use of screw adjustable device, the discharge port can be adjusted according to the height of any up and down. The size of the donut can also be adjusted.
| Model | Size(mm) | Weight | Power | Mould size | Donut size | Capacity | Note |
|---|---|---|---|---|---|---|---|

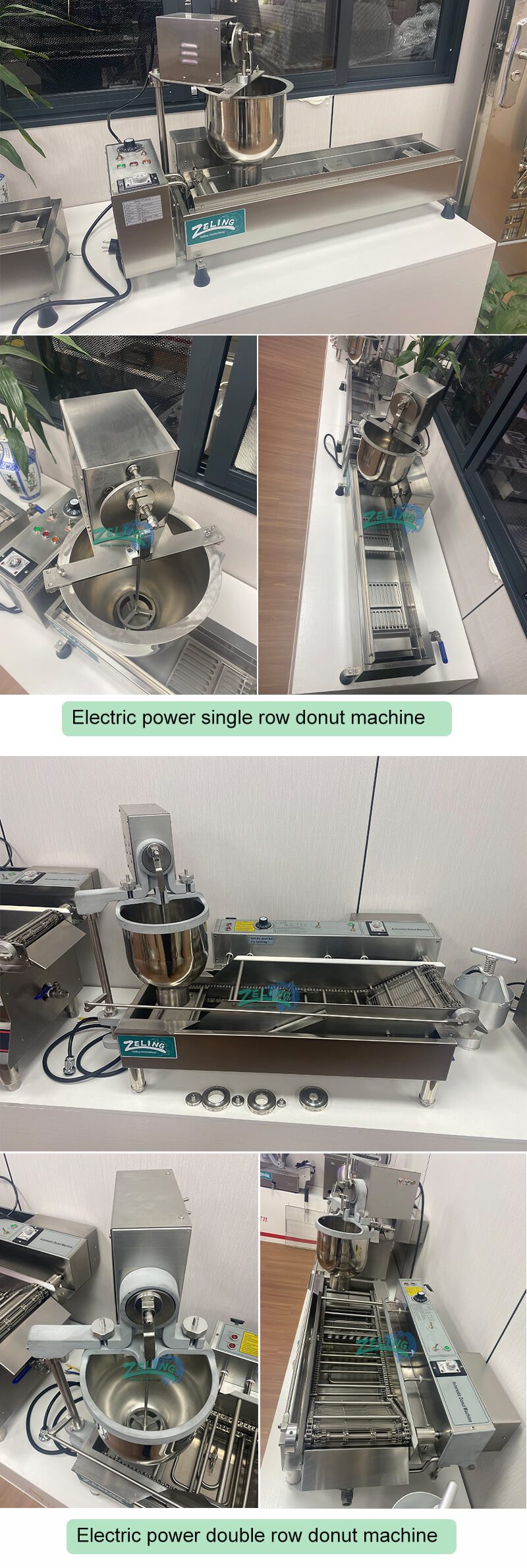

| ZL-ED1 | 1050*400*650 | 28 kg | 3 kw | 25,35,45mm/ 3 sets | 20-120mm | 500 pcs/h | Electric |
| ZL-ED2 | 1300*605*415 | 48kg | 6kw | 25,35,45mm/ 3 sets | 20-120mm | 300-1200pcs/h | Electric |

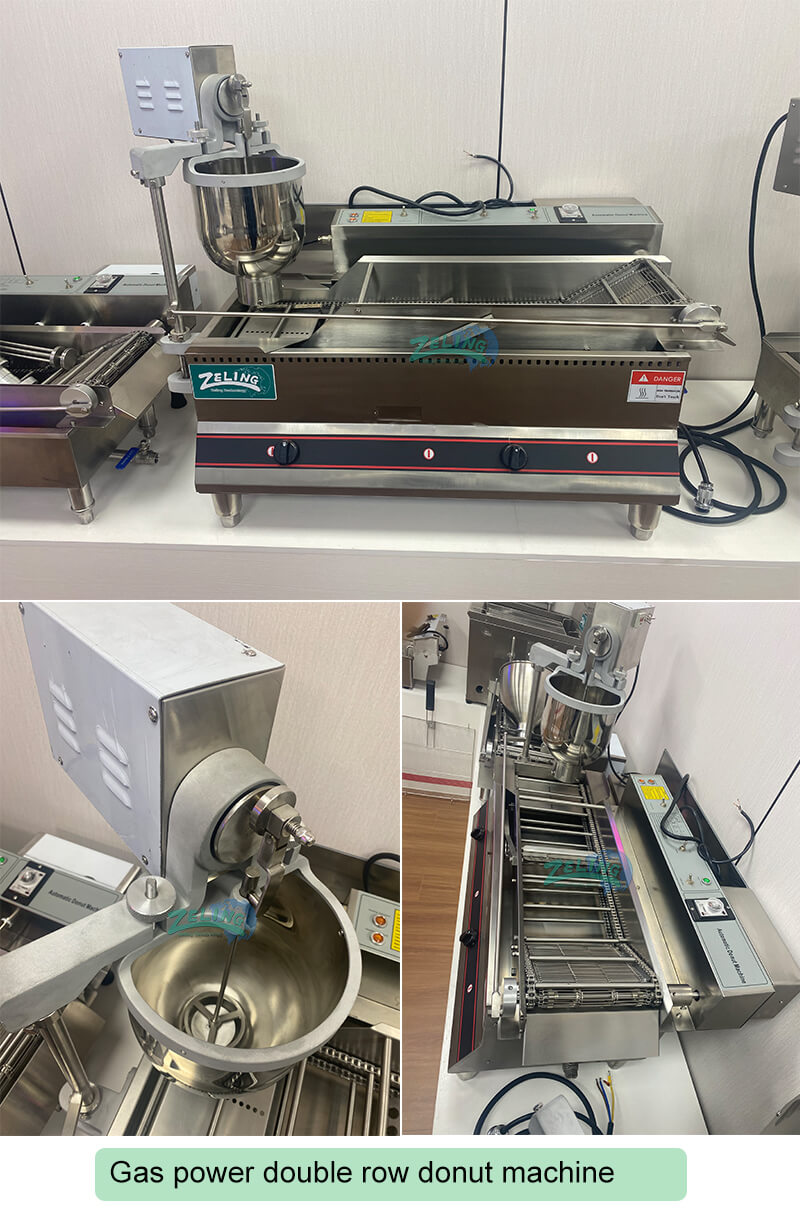

| ZL-GD2 | 1300*650*840 | 74kg | 0.05kw | 25,35,45mm/ 3 sets | 20-120mm | 300-1200pcs/h | Gas |
Feature:
- Automatic calculation system, automatic temperature control, and ultra-high temperature protection system;
- Speed regulator, single/double row selection system;
- Pause/start independent transmission function, chain track conveyor;

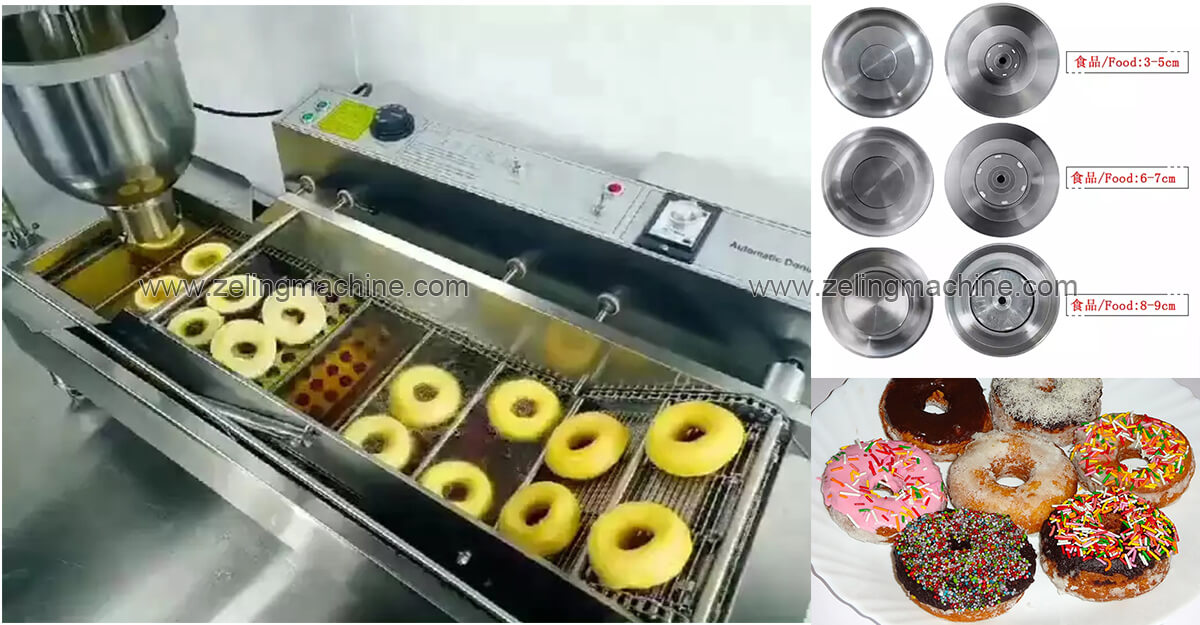

- There are three levels of thickness and size adjustment for donuts,with three sets of different size molds: 25MM, 35MM, and 45MM, for donuts in sizes of 30-50MM, 55-90MM, and 70-120MM;.
- Safety oil discharge valve, dual temperature protection system
