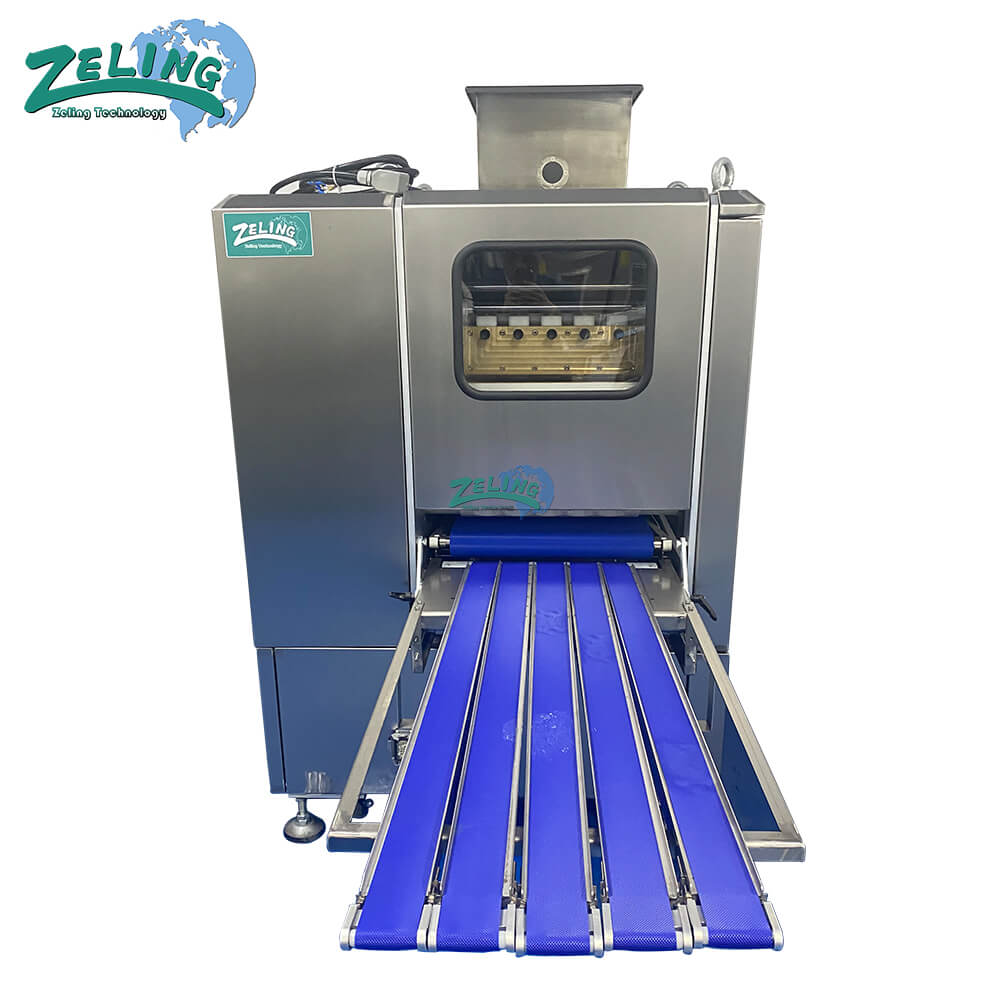

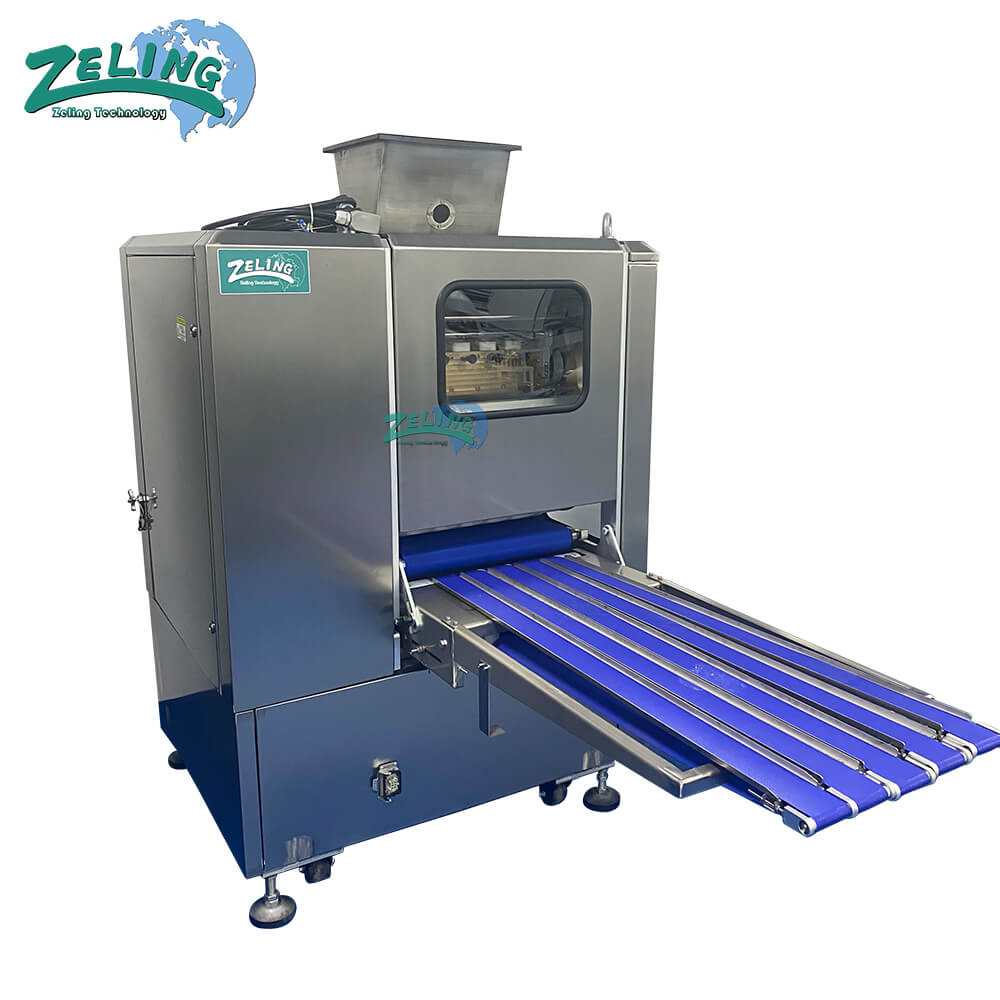

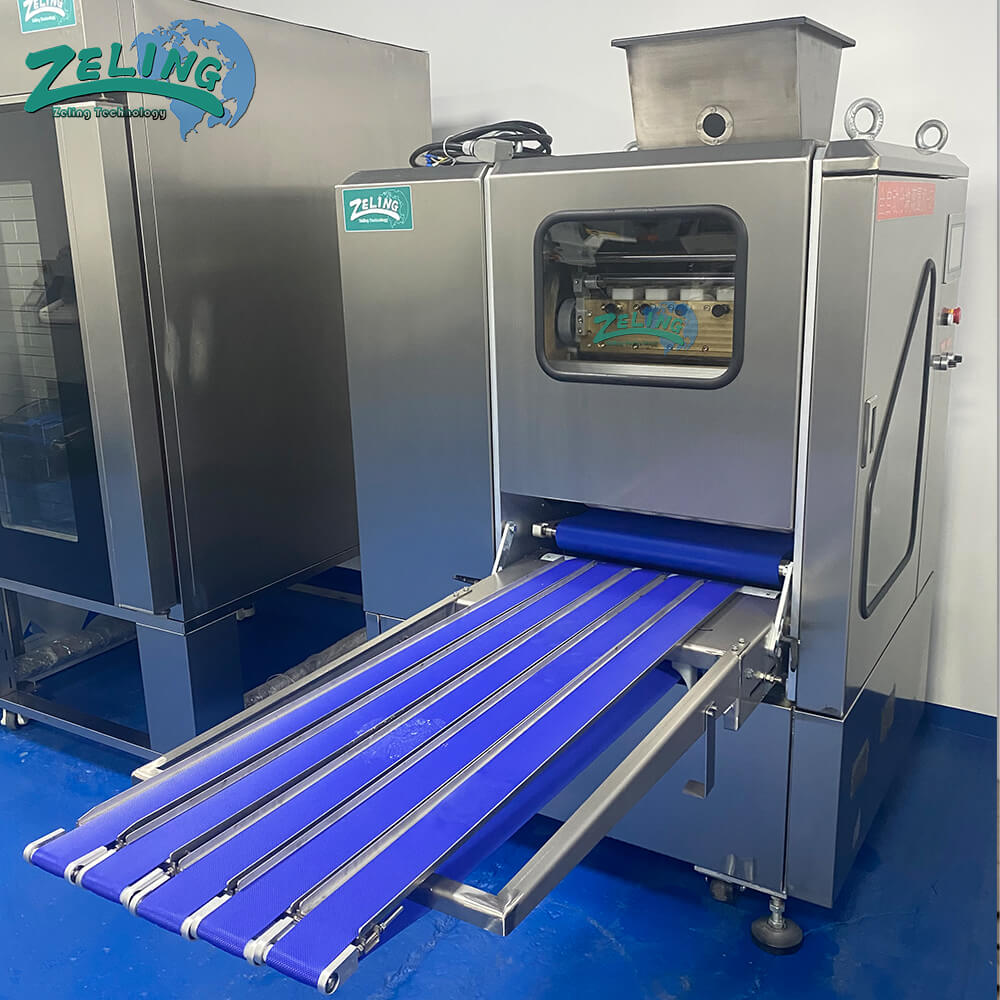

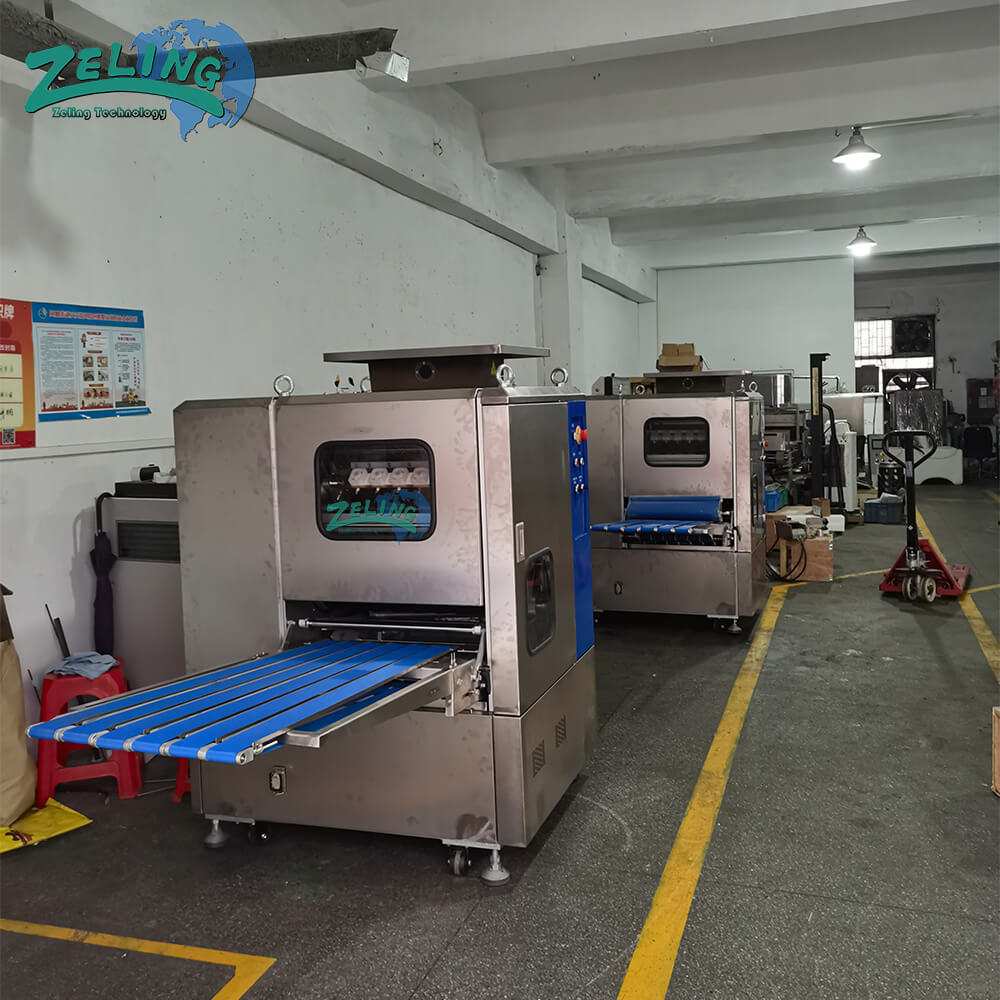

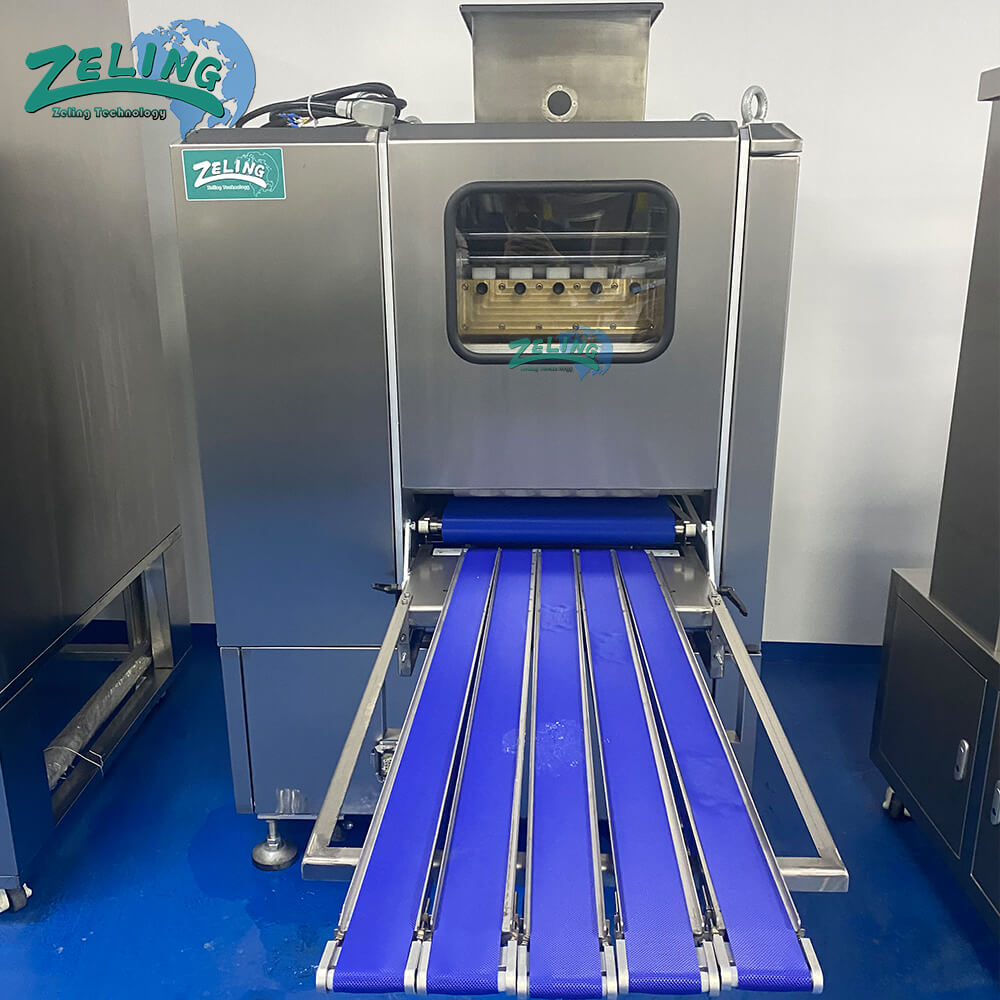

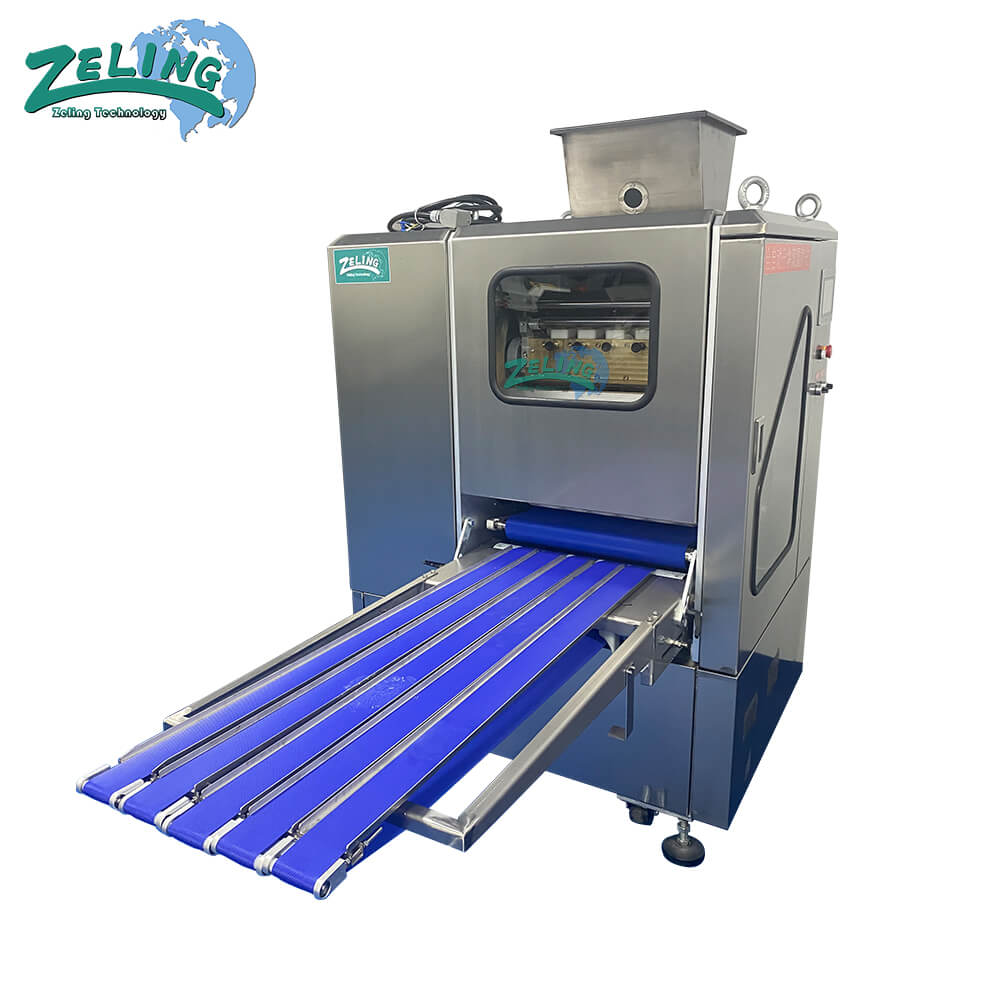

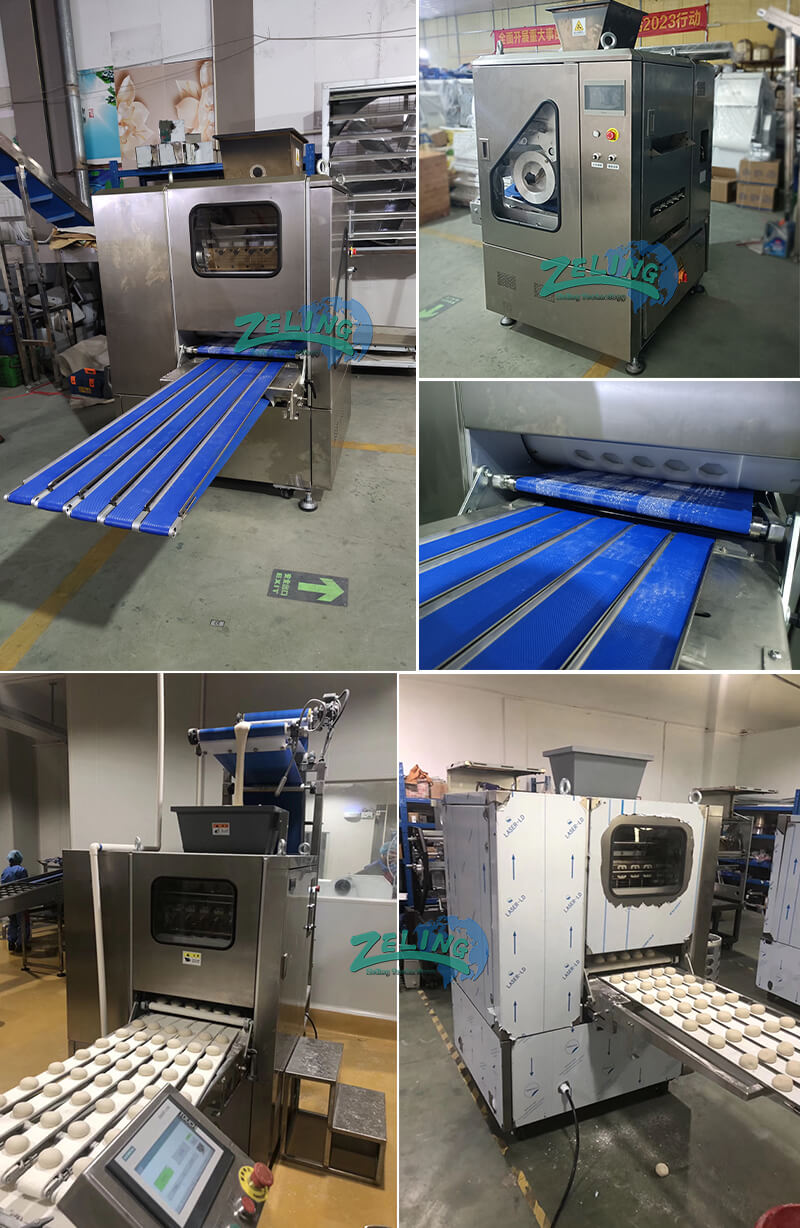

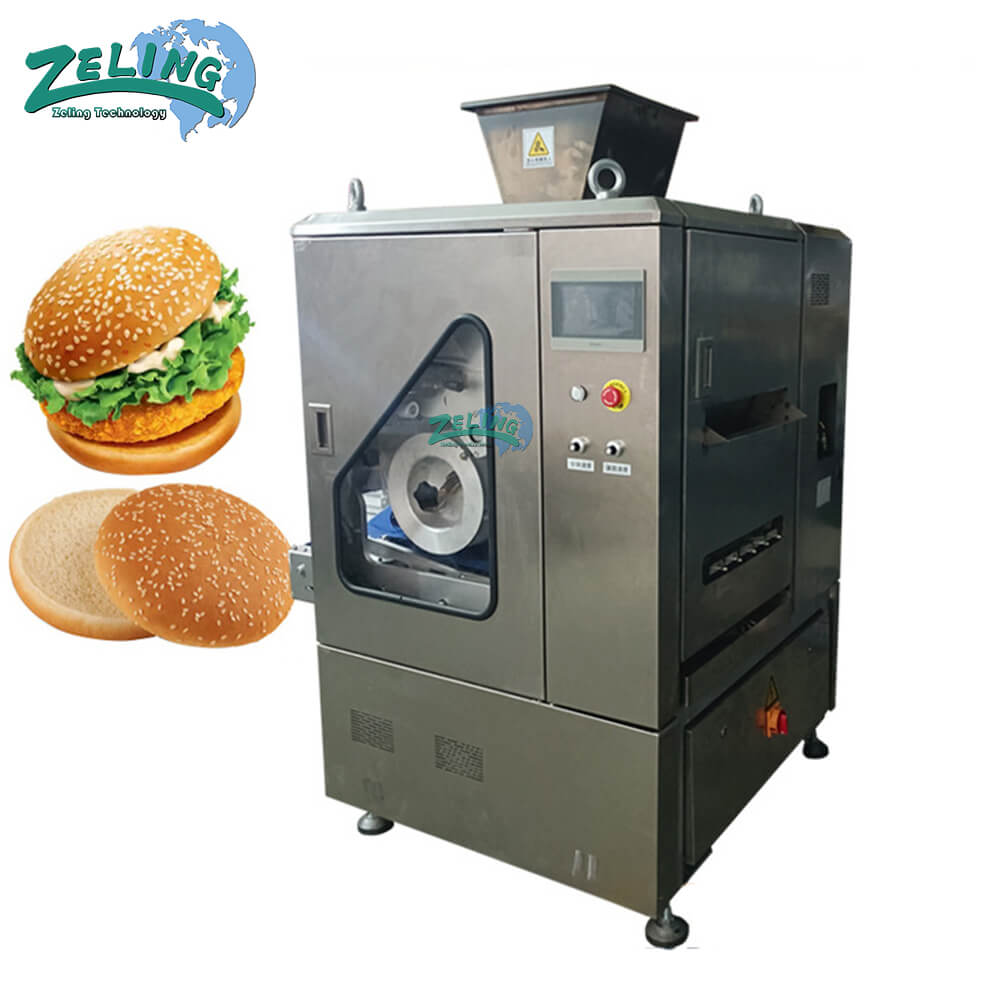

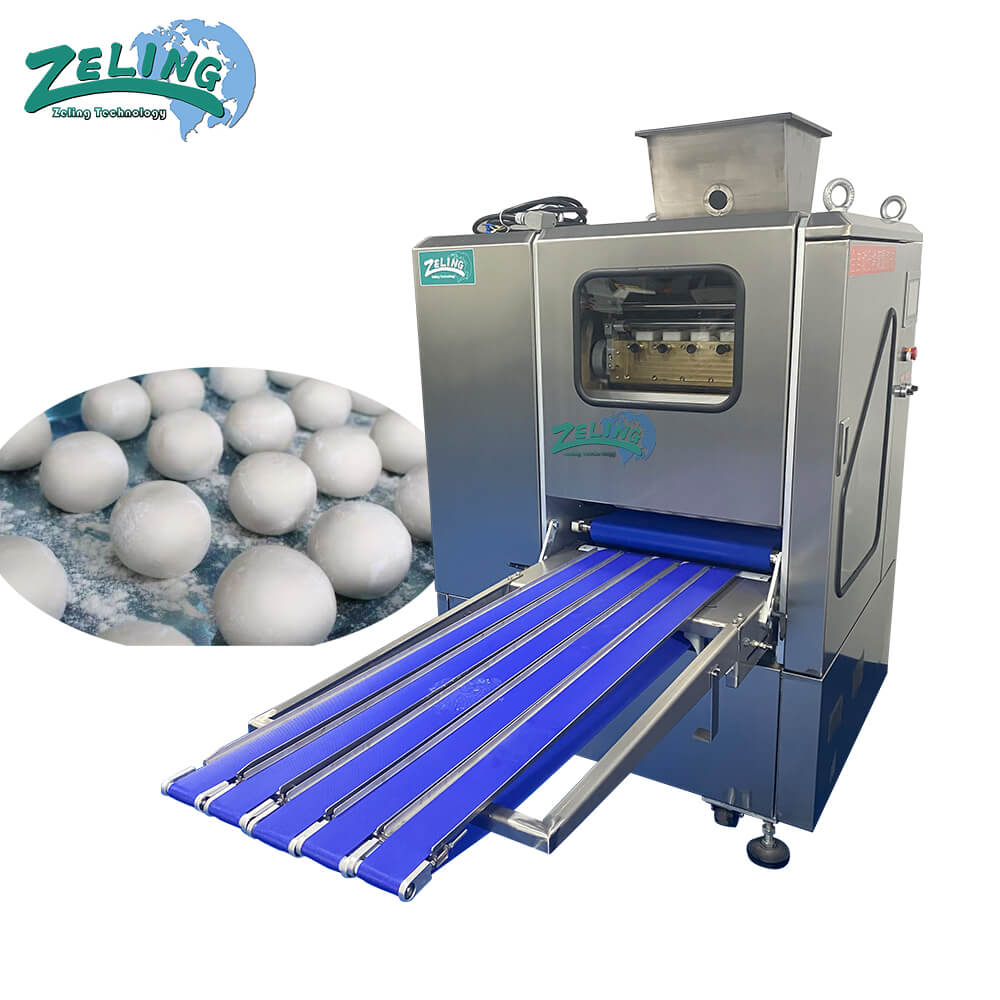

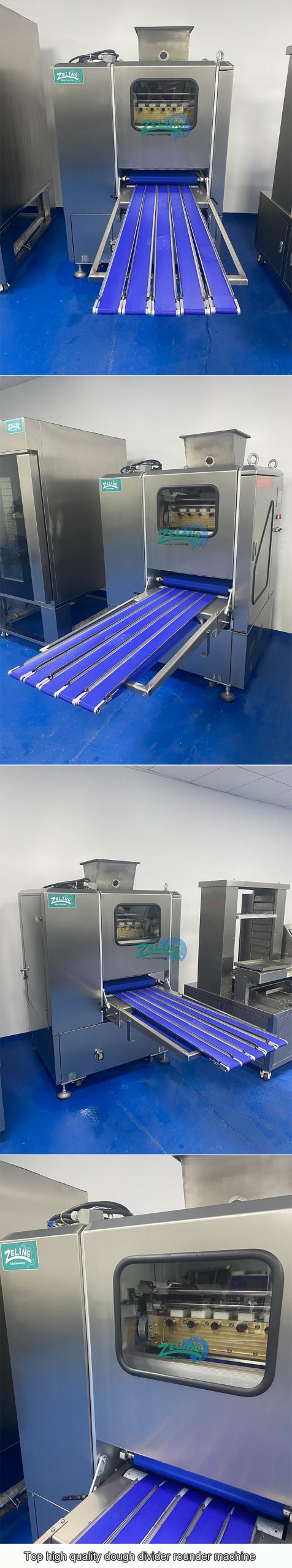

Full Automatic Dough Divider Rounder ( 4/5/6 rows)

Introduction:

The machine suite for the production of various weight dough ball, it can divide the dough into  small dough ball with same weight. This dough divider and rounder machine can divide and round the dough into the weight from 30-100g evenly . The machine combined the dough divider and dough rounder into one machine, it  can save lots  of sapce, and improve the working efficiency.

The moulding roller can change to get different size dough ball.  It is widely used in industrial production of bread dough, pizza, air bun, naan, burger embryo, sandwich, tortilla, toast, baguette and other products.

ModelDough ball weightOutput capacityPowerWeightDimension
ZL-DR4
4 rows (30-220g)
mould 1: 30-50g 8000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR4
4 rows (30-220g)
mould 2: 50-80g8000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR4
4 rows (30-220g)
mould 3: 80-100g8000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR4
4 rows (30-220g)
mould 4: 100-150g8000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR4
4 rows (30-220g)
mould 5: 160-200g8000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR4
4 rows (30-220g)
mould 6: 200-220g8000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR5
5 rows
(30-120g)
mould 1: 30-50g 10000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR5
5 rows
(30-120g)
mould 2: 50-80g10000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR5
5 rows
(30-120g)
mould 3: 80-100g10000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR5
5 rows
(30-120g)
mould 4: 100-120g10000 pcs/hour4.2 kw1000 kg2000*1140* 1650 mm
ZL-DR6
6 rows
(30-120g)
mould 1: 30-50g 12000 pcs/hour4.2 kw1000kg2100*1330* 1800mm
ZL-DR6
6 rows
(30-120g)
mould 2: 50-80g12000 pcs/hour4.2 kw1000 kg2100*1330* 1800mm
ZL-DR6
6 rows
(30-120g)
mould 3: 80-100g12000 pcs/hour4.2 kw1000 kg2100*1330* 1800mm
ZL-DR6
6 rows
(30-120g)
mould 4: 100-120g12000 pcs/hour4.2 kw1000 kg2100*1330* 1800mm

Features:

  1. Reasonable structure, easy operation, high output, and accurate weight of block dough;
  2. Good rounding effect ;
  3. The circuit adopts PLC system programming control, and the operation panel is intuitive and simple;
  4. The block adopts a high-performance hydraulic system, Ensure accurate dough weight.
